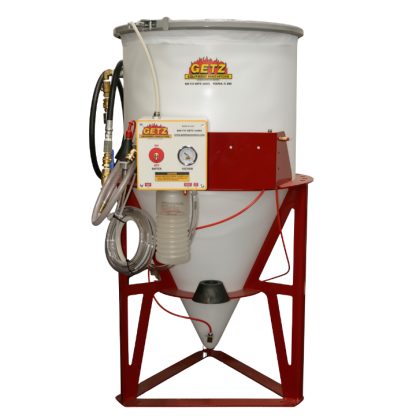

Dry Chemical Filling System 450lb BC

Name: Dry Chemical Filling System 450lb BC
SKU: 3G0070
Availability: InStock

Plastic dry chemical filling system with 450 lb hopper capacity used with BC chemical. For ABC yellow fill system with this set up, use part number 3G0069.

SKU: 3G0070 Category: Dry Chemical Fill Systems

Description

450 Lb (204 Kg) Capacity – White for BC Chemical
High Density Polyethylene (Plastic) Hopper & Stand
No Rust
Translucent – See Chemical Level
Easy On/Off Switch On Console
Air Injection to “Fluff” Chemical
Easy On/Off Lid & Filter
Includes Wheeled Unit Fill Cone
Caster Sold Separately (3G0064)
Actual Dimensions are 34″W x 36″D x 50″H

Image	SKU	Product Name
	3G0123	Maintenance Kit 450 lb Fill Systems
	3G0037	Pneumatic Cylinder Bench Vise
	4G0176	Extinguisher Parts Kit
	3G58546	Hose Discharge 450lb Portables
	3G59371	Kit Extinguisher Valve Cleaner
	3G0000	Airline Coiled With Air Gun
	1G0385	Lid Insert for 450 Fill System
	2G0043	Scale Digital 110 lbs X 01
	3G0038	Vise Bench Mechanical
	3G0009	Adapter Set Dry Chem/Coupling
	4G59591	Extinguisher Accessories Kit
	3G0064	Swivel Caster 4 in – Set Of 4
	4G0083	Auto-Fill Station
	1G0053	Filter Moisture Automatic Drain
	1G0237	Moisture Cap Filler Tube
	3G0028	Regulator Assembly Double
	2G52402	Compressor Air 5 HP
	3G59509	Dual Regulator Package
	3G0045	Dry Chemical Reclaim Assembly With 6 Lids
	3G0164	Hold Down Auto-Fill Complete
	2G0097	Parts Cabinet 20 Drawer
	4G59542	Dust Collection System 120V
	2G0131	Scale Digital 150 lbs Legal For Trade

Image	SKU	Product Name
	1G51428	Meyer Hub
	1G0591	Elbow Street 3/4 Male x 3/4 Female Plastic
	3G0058	Discharge Line – Wheeled Unit
	1G0015	3 Way Toggle Valve
	1G0014	Ring Bracket
	1G0020	Jar Plastic Ribbed
	1G0176	Nozzle Air Injection 40 Degree 2.5 GPM
	1G0280	Metal Hopper Lid 450 lb Plastic Fill Systems
	1G0205	Jar Gasket
	1G0016	Bulkhead Fitting 1/2 in Ace
	1G0251	Lever Lock Ring – 450 lb Plastic Hoppers
	1G0046	Tubing Poly 1/4 Red per ft
	1G0136	Connector 1/4 Tube X 1/4 MPT
	1G0158	Elbow Street 1/2 Male X 1/2 Female Plastic
	1G0041	Clamp 2 – Ear 3/4
	1G0018	Gauge 30 in Vacuum 2 in Dial
	1G0049	Tubing Poly 3/8 White per ft
	1G0250	Filter for 450 lb Fill System Hoppers
	1G0327	Elbow 90 1/4 Od X 1/8 NPT
	1G0267	1/2″ Brass Socket
	1G0047	Tubing Poly 1/4 Yellow per ft
	1G0011	Jar Bracket Assembly
	1G0048	Tubing Poly 1/4 White per ft
	1G54197	Diffuser Fitting 3/4 x 1/2
	1G0168	Bulkhead Female 1/4 in NPT X 1/4 in PTC-Brass
	1G0077	Elbow Brass 90 Degree 1/2 NPT
	1G0116	Connector Plastic 3/8 Tube X 1/4 MPT
	1G0032	Tubing 1/2 ID Clear Vinyl Per Ft
	1G0198	Elbow 90 1/4 in Stem To 1/4 in Tube
	1G0086	Nipple Reducing Poly 1 X 1/2
	1G0235	Cone Wheeled Unit
	1G0281	Valve Relief 3/4
	3G0082	Push Button Valve with Red Cover
	1G0017	Filter Housing Assembly
	3G0062	Optimum Control Console for 450 and Metal Fill Systems
	1G0193	Bulkhead Union 3/8-1/4 Tube, M20.Ox1.5 Th
	1G0197	Bulkhead Union 1/4-1/4 PTC Tube
	3G58553	Fill Line Assembly
	1G0067	Jar Filter

3G0070-M

Image	SKU	Product Name
	1G0049	Tubing Poly 3/8 White per ft
	1G0016	Bulkhead Fitting 1/2 in Ace
	1G0018	Gauge 30 in Vacuum 2 in Dial
	1G51428	Meyer Hub
	1G0281	Valve Relief 3/4
	1G0041	Clamp 2 – Ear 3/4
	1G0267	1/2″ Brass Socket
	3G0082	Push Button Valve with Red Cover
	1G0116	Connector Plastic 3/8 Tube X 1/4 MPT
	3G58553	Fill Line Assembly
	1G0158	Elbow Street 1/2 Male X 1/2 Female Plastic
	1G0011	Jar Bracket Assembly
	1G0197	Bulkhead Union 1/4-1/4 PTC Tube
	1G0086	Nipple Reducing Poly 1 X 1/2
	1G54197	Diffuser Fitting 3/4 x 1/2
	1G0032	Tubing 1/2 ID Clear Vinyl Per Ft
	1G0327	Elbow 90 1/4 Od X 1/8 NPT
	1G0047	Tubing Poly 1/4 Yellow per ft
	1G0251	Lever Lock Ring – 450 lb Plastic Hoppers
	1G0168	Bulkhead Female 1/4 in NPT X 1/4 in PTC-Brass
	1G0591	Elbow Street 3/4 Male x 3/4 Female Plastic
	1G0020	Jar Plastic Ribbed
	1G0015	3 Way Toggle Valve
	3G0062	Optimum Control Console for 450 and Metal Fill Systems
	1G0280	Metal Hopper Lid 450 lb Plastic Fill Systems
	1G0067	Jar Filter
	1G0250	Filter for 450 lb Fill System Hoppers
	1G0017	Filter Housing Assembly
	1G0176	Nozzle Air Injection 40 Degree 2.5 GPM
	1G0046	Tubing Poly 1/4 Red per ft
	1G0077	Elbow Brass 90 Degree 1/2 NPT
	3G0058	Discharge Line – Wheeled Unit
	1G0193	Bulkhead Union 3/8-1/4 Tube, M20.Ox1.5 Th
	1G0048	Tubing Poly 1/4 White per ft
	1G0014	Ring Bracket
	1G0235	Cone Wheeled Unit
	1G0136	Connector 1/4 Tube X 1/4 MPT
	1G0205	Jar Gasket
	1G0198	Elbow 90 1/4 in Stem To 1/4 in Tube
